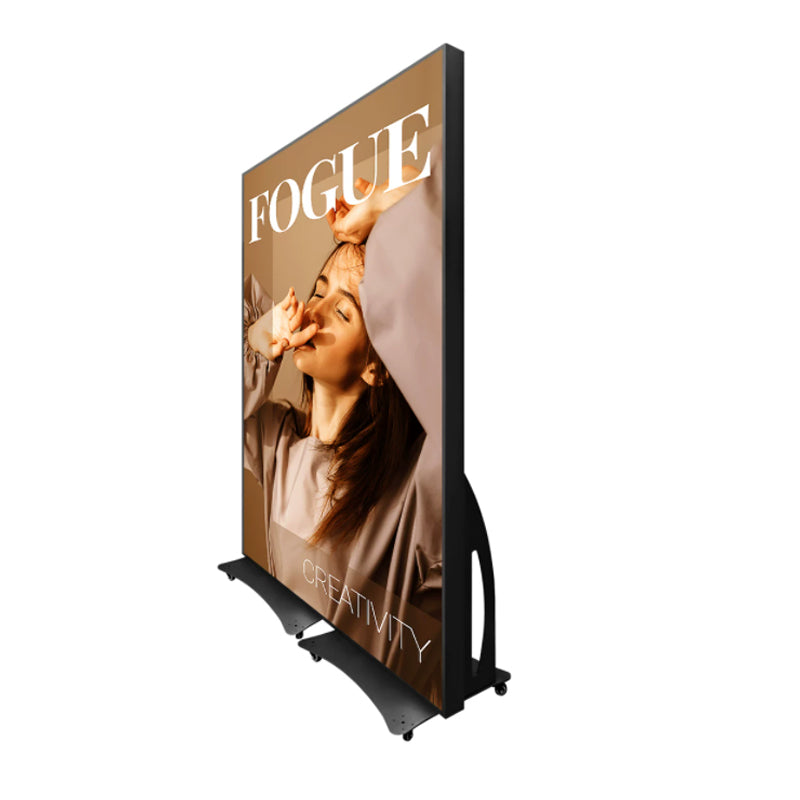

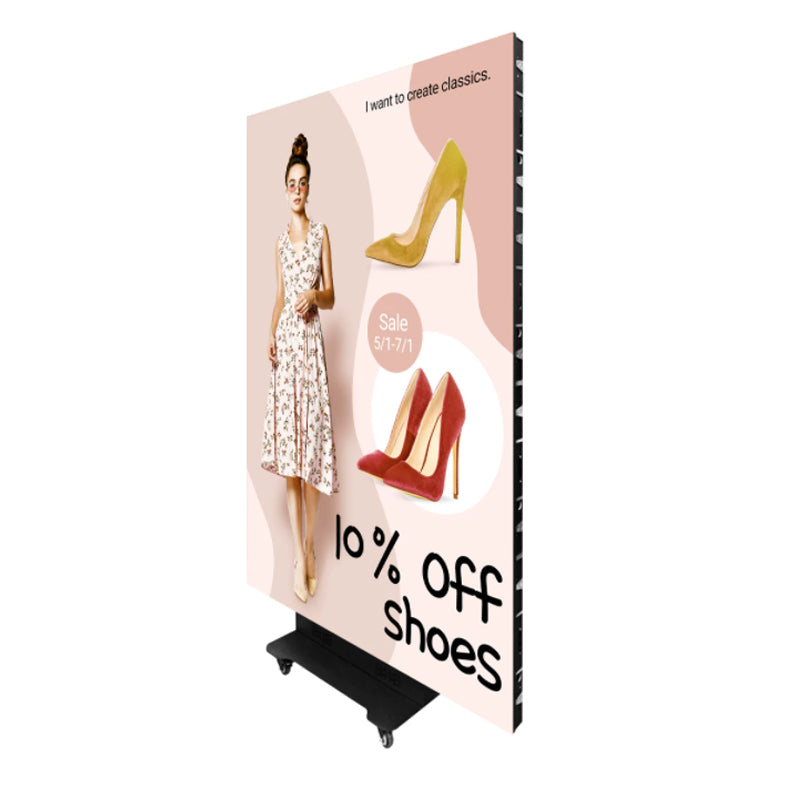

Ultra-slim Design Poster LED Sign
The EVERSHINE ES60 Series adopts an ultra-slim design, weighing only 45KG. It is lighter and thinner than traditional LCD advertising screens, ensuring a sleek and modern look.
With a 655x2060x449mm body and a 640x1920mm display area, this LED poster offers a plug-and-play solution for quick setup, easy transport, and convenient use in various commercial settings.
Stable and Durable Structure
The EVERSHINE ES60 Series adopts a high-strength aluminum frame and cold-rolled steel base, ensuring a solid and stable structure. This design prevents deformation or collapse, providing long-lasting durability for continuous commercial use.
With screw-fixed LED modules, the display maintains excellent flatness and visual uniformity, delivering a smooth, high-quality viewing experience for digital .advertising and information display.
Easy Mobility and Transport
The EVERSHINE ES60 series is equipped with high-quality universal wheels, each capable of bearing over 50kg. The sturdy and stable design, combined with built-inleveling support feet, allows easy movement and quick height adjustment during multi-screen splicing.
Comes with a standard ramp-equipped flight case for safe transport and rental applications. The lightweight, ergonomic design makes assembly, disassembly, and handling effortless—even for female user.
Energy-Efficient & Intelligent Performance
The EVERSHINE ES60 series supports 24/7 continuous operation with low power consumption and efficient heat control, preventing overheating or screen damage. Optional GPS time synchronization allows multi-screen playback alignment through a specified 4G module.
The system supports automatic brightness adjustment by time period, reducing energy use and preventing light pollution. It also enables scheduled rebooting, remote screen control, and volume or brightness adjustment. Optional stereo speakers. provide. synchronized audio and video for a better advertising experienc.
Smart Cloud Control Management
The system allows centralized control via a network management platform, enabling remote content publishing and management across multiple screens. Users can customize program content, windows, and playback modes easil.
Equipped with anindustrial-grade motherboardand embedded system, protected from viruses, with a 4-core processor (≥1.4GHz) supporting 4K video hardware decoding for smooth performance. Supports multiple connection options including WiFi, 4G/5G, RJ45, and USB, controllable via PC, mobile app, or USB drive. WiFi dual-mode enables simultaneous hotspot and WiFi connection, offering added functionality.
Enhanced Protection with Optional GOB Technology
The EVERSHINE ES60 series supports optional GOB (Glue On Board) technology, available for models P1.25, P1.538, P1.86, and P2.5. For P1.25 and P1.538, GOB is the default .configuration to prevent LED damage during screen splicin.
This advanced coating shields the display from liquid, moisture, dust, static, and impact, ensuring long-term durability and safe operation in various environments.
| Specification | GOB P1.25 | GOB P1.53 | GOB P1.86 | GOB P2 | GOB P2.5 |
|---|---|---|---|---|---|
| Pixel pitch | 1.25 mm | 1.53 mm | 1.86 mm | 2 mm | 2.5 mm |
| Module size | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm |
| Display size | 640×1920 mm | 640×1920 mm | 640×1920 mm | 640×1920 mm | 640×1920 mm |
| Display resolution | 512x1536 dots | 416×1248 dots | 344x1032 dots | 320x960 dots | 256x768 dots |
| Avg Power | 216 W | 216 W | 216 W | 216 W | 216 W |
| Max Power | 673 W | 673 W | 673 W | 673 W | 673 W |
| LED lifetime | 100,000h | ||||
| Brightness | 600–800nits | ||||
| Materials | Aluminum | ||||
| Refresh rate | 3840–7680Hz | ||||
| View angle(H/V) | 140°±5° | ||||
| Brightness uniformity | >97% | ||||
| Dimming | 0–100% | ||||
| Grey Level | 14 bits | ||||
| Working voltage | AC90-264V,47-63Hz | ||||
| Temp. | -10℃~+40℃ | ||||
| Humidity | 10–80% | ||||
| IP rating | IP50 indoor | ||||
| Color temp(K) | 3200-9300 | ||||
| Weight | 52 kg /12.5kg | ||||
| Maintenance mode | Front | ||||
| Certifications | CE,FCC,RoHS | ||||
