ES Series Rental LED Display | EVERSHINE LED
EVERSHINE ES Series Rental LED Display features an integrated aesthetic design with high-strength die-cast aluminum cabinets. Lightweight, easy assembly, seamless splicing and ultra HD visuals. Dustproof, anti-collision, low power consumption and flicker-free, ideal for indoor & outdoor event rental, stage and commercial applications.
Light Weight and Thin Design
Adopting a lightweight and slim design with an 80mm thickness, the cabinet enables fast installation and disassembly. The 500×500mm cabinet weighs only 7.25kg, while the 500×1000mm version is 12.5kg. Built with a high-precision die-cast aluminum structure, it delivers stable performance and excellent anti-deformation ability. Equipped with seamless splicing and an ultra-wide viewing angle, the screen ensures uniform color and delicate, high-quality images.
Sleek and Robust Structure
It comes with dustproof and waterproof performance for strong environmental adaptability. High refresh rate and high gray scale realize flicker-free shooting. Excellent collision resistance makes it highly reusable for rental scenarios. Meanwhile, low power consumption achieves energy-saving operation and higher cost performance, perfectly suitable for stage shows, commercial events and various indoor & outdoor rental projects.
High Definition, Better Visual Quality
This cabinet supports fine pixel pitches including P1.953, P2.604, P2.976, P3.91 and P4.81. The high-definition LED cabinet supports 600-800nits for indoor screens and 4500-5000nits for outdoor screens, and high refresh rate from3840Hz to 7680Hz.
Indoor Front & Rear Maintenance, Outdoor Rear Maintenance
The ES series features indoor front & rear maintenance and outdoor rear maintenance, offering easy access for upkeep in any setting. It’s a durable and efficient solution for both indoor and outdoor displays.
ES LED Screen Rental Cabinet
The ES LED screen rental cabinet is designed for easy setup and transportation of LED screens in temporary installations. It offers durability and efficient support, making it ideal for events, concerts, and exhibitions.
Seamless Display and Better Visual Effects
The LED cabinets seamlessly connect with each other, ensuring a smooth and continuous display without any visible gaps or interruptions. With no visible gaps or interruptions between cabinets, content such as images and videos can be displayed consistently across the entire screen, maintaining visual integrity.

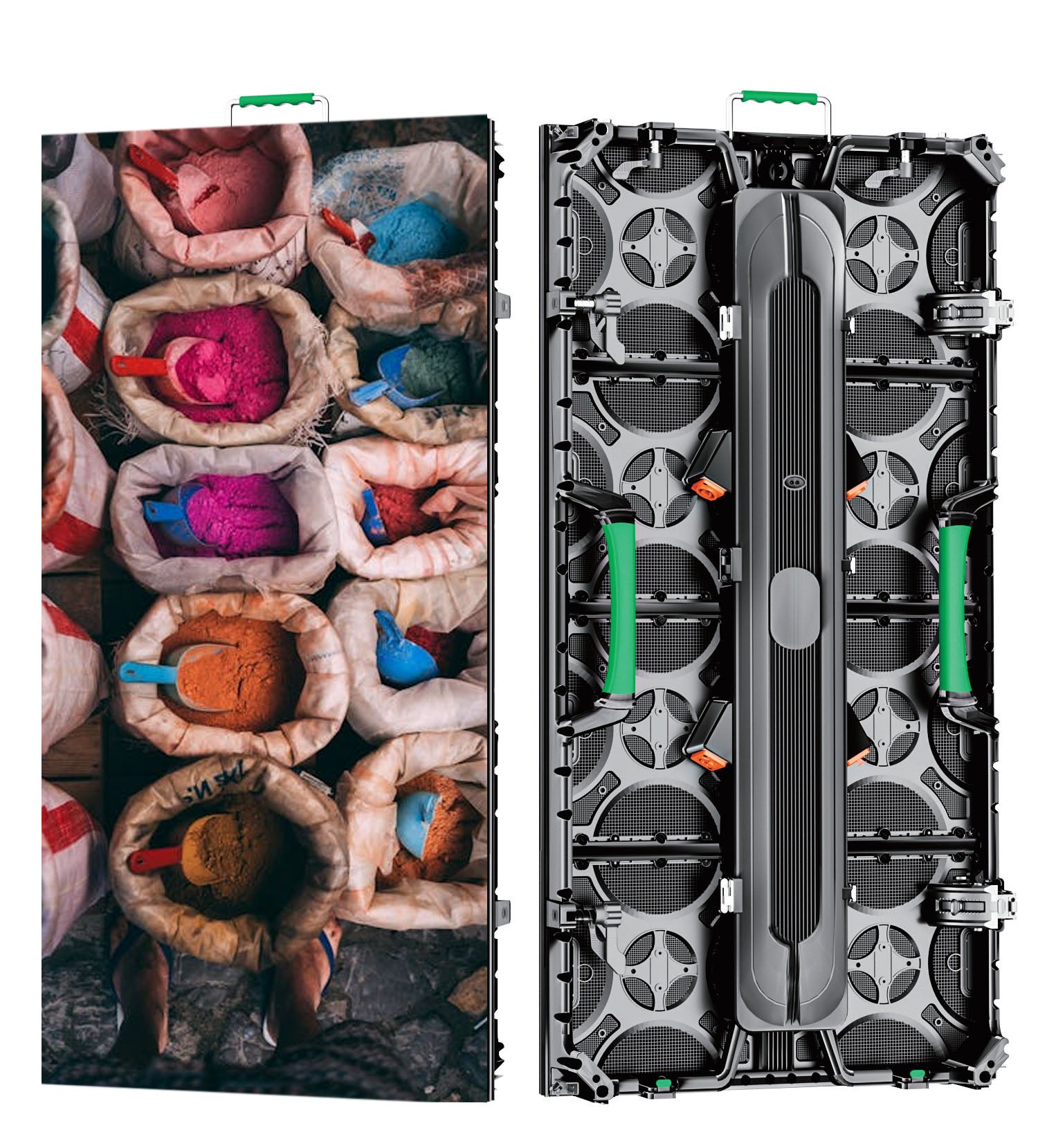

Internal Structure of ES Cabinet
The ES cabinet features a modular design with precision wiring, integrating a power supply, cables, receiving card, and LED modules, ensuring efficient performance, easy maintenance, and reliable operation for high-end displays.
| Specification | P1.953 | P2.604 | P2.976 | P3.91 | P4.81 |
|---|---|---|---|---|---|
| Pixel pitch | 1.953 mm | 2.604 mm | 2.976 mm | 3.91 mm | 4.81 mm |
| Pixels(500×500mm) | 256×256 | 192×192 | 168×168 | 128×128 | 104×104 |
| Pixels(500×1000mm) | 256×512 | 192×384 | 168×336 | 128×256 | 104×208 |
| Module resolution | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Avg Power | 200 W/m² | 200 W/m² | 225 W/m² | 225 W/m² | 225 W/m² |
| Max Power | 400 W/m² | 400 W/m² | 450 W/m² | 450 W/m² | 450 W/m² |
| LED lifetime | 100,000h | ||||
| Brightness | In:600–800nits / Out:4500-5000nits | ||||
| Module size | 250×250 mm | ||||
| Refresh rate | 3840–7680Hz | ||||
| View angle(H/V) | 140°±5° | ||||
| Brightness uniformity | >98% | ||||
| Dimming | 0–100% | ||||
| Grey Level | 14 bits | ||||
| Working voltage | 100–240V 50–60Hz | ||||
| Temp. | -10℃~+40℃ | ||||
| Humidity | 10–80% | ||||
| IP rating | IP50 indoor / IP65 outdoor | ||||
| Cabinet size | 500×500/1000×80mm | ||||
| Weight | 7.25kg /12.5kg | ||||
| Service | Front/Rear(In) / Rear(Out) | ||||
| Certifications | CE,UL,FCC,RoHS,REACH | ||||
